50mm AAC Thin Panel | Eastland Building Materials

Eastland 50mm AAC Thin Panels have been well used in different kinds of buildings, such as apartments, villas, schools, hospitals, factories, shopping malls etc.
  • Eastland AAC panel

  • Eastland

  • Eastland

  • White

  • 625kg/m3

  • 4.0Mpa

  • China(Mainland)

  • 50mm

  • Fireproof, Load-Bearing, Sound & Heat Insulation

  • Load-Bearing Floor, Roof, Wall, Fence

Product Description

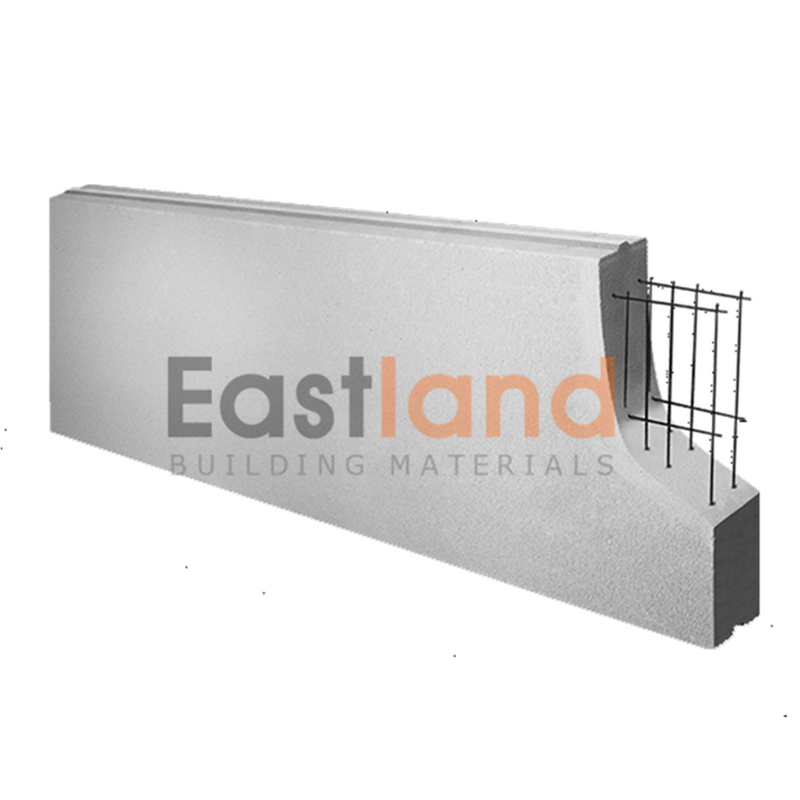

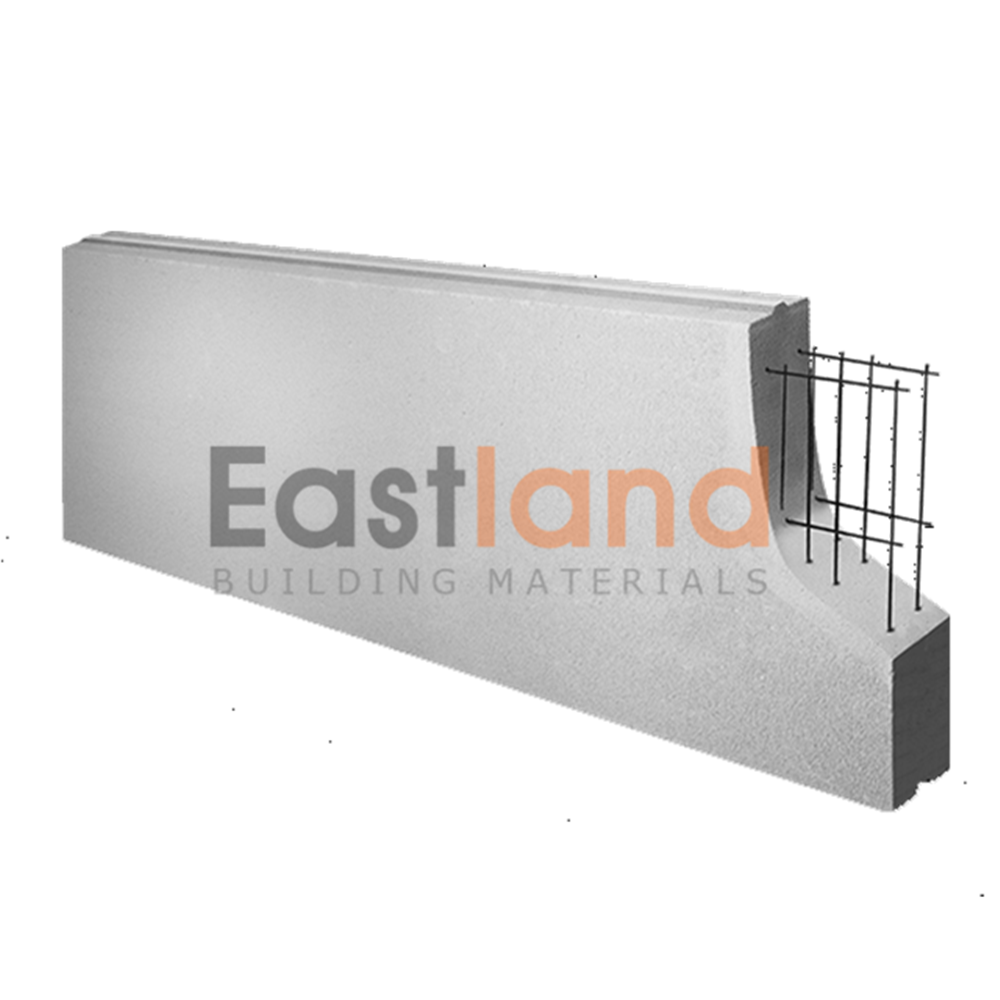

Eastland AAC Panel is the shortened form of Autoclaved Aerated Concrete Panel. The main materials of Eastland AAC Panel are silicon sand, cement, lime and gypsum etc. Reinforced with anti-corrosion processed steel cage, the concrete panels with many air holes was formed after high-temperature, high-pressure protection with steam. It is a new type constructional material with excellent functions. There are patents of Germany, Sweden and Japan included in the production equipments. The complete production process, from mixing raw materials, anti-corrosion processing of steel cage, organizing into frame, pouring paste on, cutting, steaming and pressing to surface processing, is calculated accurately with computer program and has a rigid QC control.
AAC panel products have been produced worldwide for more than 80 years and offer considerable advantages than other construction materials. One of the most important advantagae is its very low environmental impact. AAC products' high resource efficiency gives it low environmental impact during all procedure of its life cycle, from processing of raw materials to the disposal of AAC waste on site. In the manufacturing process, no pollutants or toxic by-products are produced.
The main materials of AAC Thin Panels are silicon sand, cement, lime,etc.
The features of AAC Thin Panels:

Is a durable masonry exterior wall comprising autoclaved aerated concrete panel.
Is easy to handle and work with, AAC material is strong but about 1/5th the weight of concrete. AAC panel is easy to cut or shape-efficiency in building.
Is known to be resilient to seismic movement-proven safety and securi
Is non-combustible- helps prevent the spread of fire.
Has insulation properties, which assists in meeting the insulation requirements of enabling warm and comfortable homes.
Is sound absorbing, greater than other typical building materials-quiet plus.
Is known to be very durable as well as economical-real value for money.

Is an inert environmentally friendly product with low carbon rating and very eco-friendly.
Can be assembled and installed by trained installers quickly and competitively-saves time and money
Installation case
Details and Size



Specific gravity 0.5 Floating on the water.The dry specific gravity of the AAC panel is only 0. 5 because it is oneof foamed concrete. As the above rate is 1/5 of common concrete
1/3 of hollow block, it lightens the self-weight of building, reduces
the cost of base and frame, cuts down the difficulty in process of
soft groundsill, and increases the construction quality.


Sound Insulation

A lot of micro and small air holes that are inside the AAc panel cause
multi-function of sound insulation and assimilation. The high precision ofpanel can create a fine air keeping space to supply a silent and
comfortable living environment.


Heat Insulation

Rate of heat transmission 0.11 1/10 of common concrete.A lot of micro and small air holes that are inside of the AAC panel form a static air layer in the material and make the rate of heat transmission of only 0.11W/m K. The function of heat insulation and preservation of the AAC panel is 10 time of common concrete. The function of heat preservation of AAC panel at 125mm thickness is same as 370mm wall of soil-block.



It is world-wide outstan." known of the anti-vibration ability of AAC panel
Only the constructions built with AAC panel are broken lightly at heavy
earthquakes at Osaka/Kobe
The tests in the laboratories of Tongji University and Southeast University in China show that the AAC panel has excellent function of anti-vibration
he light self-weight of AAC is the main cause, as it allows bigger angular distortion between layers and the allowed changing angle is 1/150.



Panel for wall----Fireproofing in 4 hours
The AAC panel can stand against fire as the low rate of heat
transmission. The self of AAC belongs to abio-compound and is not
burnable. It doesn't produce nocuousness gas. At Tianjin National
Fixed Anti-fire System Center, it passed the test for fire bearing of
240 min limit.


Loading ability

The AAC panel can bear wind load, snow load and dynamic load
There are following types of the AAC panels:
Outside wall panel
Inner wall panel
Roof panel
Floor panel
The steel ribs inside of AAC panel are arranged by CAd according to loading situation, that the capacity of loading is obtained.
In general, the loads of building are
1.Constant load (incl. self weight and floors)
2. Living load
3. Snow load
4. Wind load
5. The effect of earthquake

Product packaging


With standard wooden pallets and containers or bulkship as request.

International Certification

                                ISO9001 Certificate


                              ISO14001 Certificate



Australian CodeMark Certificate
for Load-bearing Floor Panels


Australian CodeMark Certificate
for Wall Panels


Q: Why choose Eastland Panel?

A: Eastland Panel can be installed quickly and can help to reduce construction and labor costs. It is characterized by steel-reinforced, load-bearing, lightness, sound and heating insulation, fireproofing, environmental protection, etc.

Q: What's the application of Eastland Panel?

A: Eastland Panel can construct interior walls, exterior walls, ornamental walls, floors, roofings, claddings, ect.

Q: Do Eastland Panel have any international certification?

A: Yes. It has ASTM for USA, EN for Europe, AS for Australia, ect.

Q:What is the specific price of the product?

A:We need to quote according to your specific requirements, including the required product size, quantity, port of arrival, required time, etc. So if you need, please contact us, we will provide you with satisfactory service in time.
