AAC Panel Internal (Interior) Panel

AAC Panel (Eastland Panel) is for Autoclaved Aerated Concrete Panel, which are made from sand, cement, lime and gypsum. Eastland AAC Floor Panel is steel reinforced and lighweight. Eastland AAC Floor Panels can be easily cut, drilled, screwed and grooved. Eastland AAC panels may be well used as external wall, internal wall, floor, roof, cladding, fence etc . Eastland AAC Floor panels have been widely used in various buildings such as residential, commercial, industrial buildings and projects in China and many other countries.
Quality Standard Eastland Panels are conforming to ASTM, AS, EN
Width:
Height/Thickenss:
Quantity:
  • Eastland AAC panel
  • EASTLAND
  • Eastland
  • White
  • 625kg/m3
  • 4.0Mpa
  • China(Mainland)
  • Fireproof, Load-Bearing, Sound & Heat Insulation
  • Load-Bearing Floor, Roof, Wall, Fence



Product Description of Eastland AAC Panel

Eastland AAC Panel is the shortened form of Autoclaved Aerated Concrete Panel. The main materials of AAC panel are silicon sand, cement, lime and gypsum etc. Reinforced with anti-corrosion processed steel cage, the concrete panels with many air holes was formed after high-temperature, high-pressure protection with steam. It is a new type constructional material with excellent functions. There are patents of Germany, Sweden and Japan included in the production equipments. The complete production process, from mixing raw materials, anti-corrosion processing of steel cage, organizing into frame, pouring paste on, cutting, steaming and pressing to surface processing, is calculated accurately with computer program and has a rigid QC control
























Application Scope of  Eastland AAC Panel

Eastland AAC Panel is also widely used to erect civil constructions (shopping malls, hospitals, schools, apartments, villas, etc) and industry constructions for floors, walls (exterior and interior), roofs, partitions, fences, etc.






Product Range of Eastland AAC








Features of Eastland AAC Panels

Lightness





Specific gravity 0.5 Floating on the water.The dry specific gravity of the AAC panel is only 0. 5 because it is oneof foamed concrete. As the above rate is 1/5 of common concrete
1/3 of hollow block, it lightens the self-weight of building, reduces
the cost of base and frame, cuts down the difficulty in process of
soft groundsill, and increases the construction quality.



Sound Insulation





A lot of micro and small air holes that are inside the AAc panel cause
multi-function of sound insulation and assimilation. The high precision ofpanel can create a fine air keeping space to supply a silent and
comfortable living environment.



Heat Insulation





Rate of heat transmission 0.11 1/10 of common concrete.A lot of micro and small air holes that are inside of the AAC panel form a static air layer in the material and make the rate of heat transmission of only 0.11W/m K. The function of heat insulation and preservation of the AAC panel is 10 time of common concrete. The function of heat preservation of AAC panel at 125mm thickness is same as 370mm wall of soil-block.



Anti-Vibration





It is world-wide outstan." known of the anti-vibration ability of AAC panel
Only the constructions built with AAC panel are broken lightly at heavy
earthquakes at Osaka/Kobe
The tests in the laboratories of Tongji University and Southeast University in China show that the AAC panel has excellent function of anti-vibration
he light self-weight of AAC is the main cause, as it allows bigger angular distortion between layers and the allowed changing angle is 1/150.



Fireproofing





Panel for wall----Fireproofing in 4 hours
The AAC panel can stand against fire as the low rate of heat
transmission. The self of AAC belongs to abio-compound and is not
burnable. It doesn't produce nocuousness gas. At Tianjin National
Fixed Anti-fire System Center, it passed the test for fire bearing of
240 min limit.



Loading ability





The AAC panel can bear wind load, snow load and dynamic load
There are following types of the AAC panels:
Outside wall panel
Inner wall panel
Roof panel
Floor panel
The steel ribs inside of AAC panel are arranged by CAd according to loading situation, that the capacity of loading is obtained.
In general, the loads of building are
1.Constant load (incl. self weight and floors)
2. Living load
3. Snow load
4. Wind load
5. The effect of earthquake

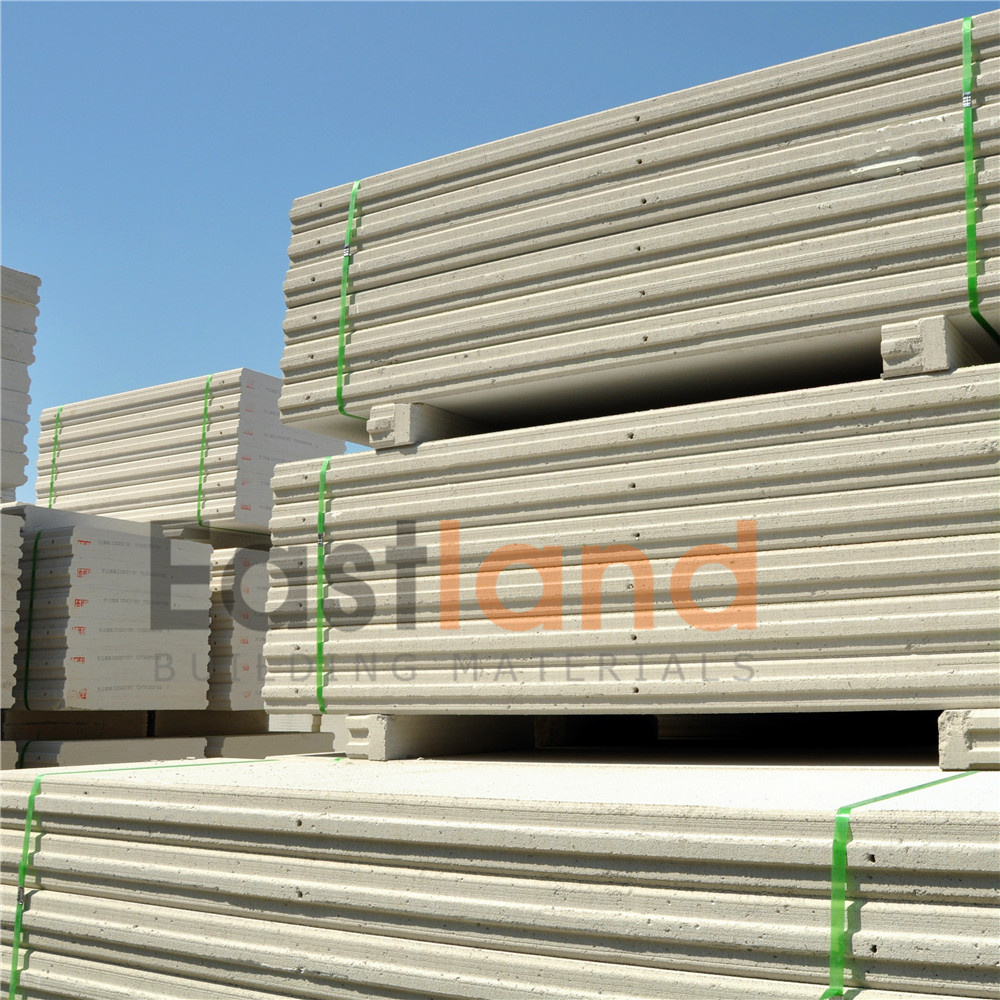

Pictures of products






Use cases







International Certification

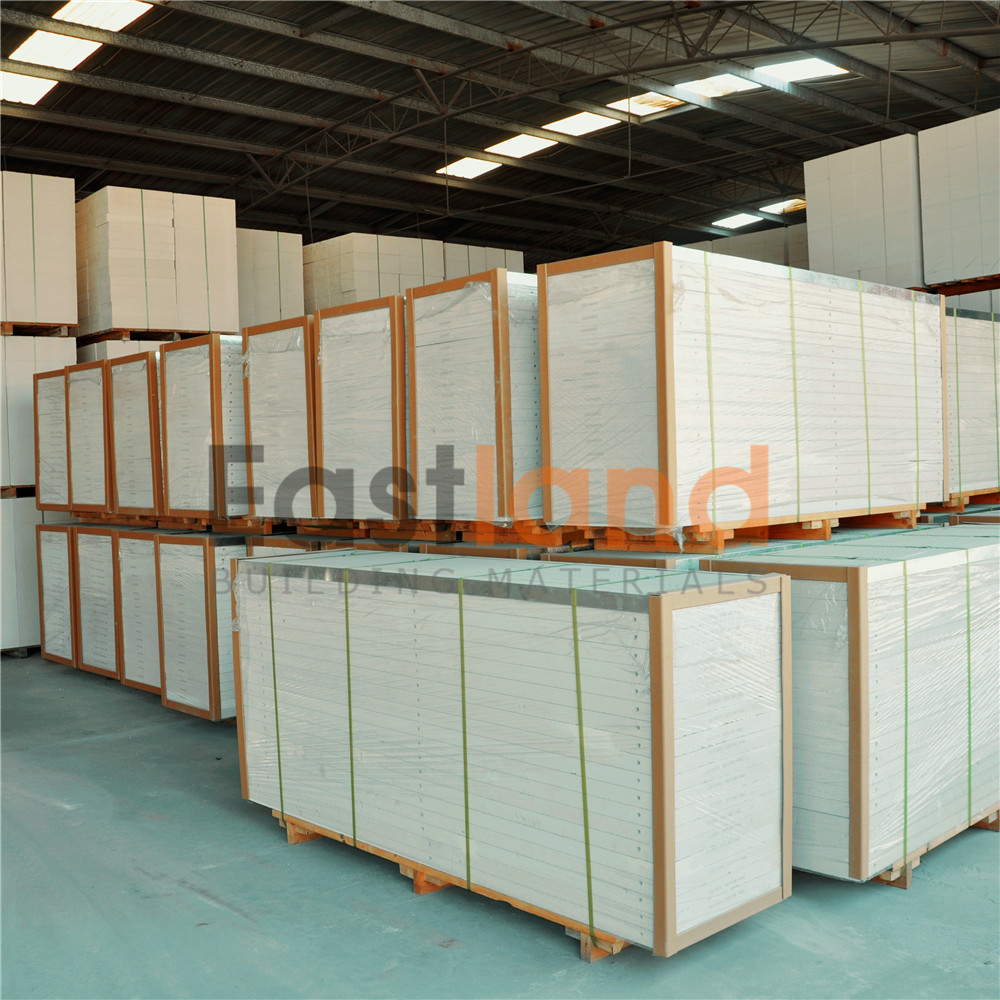

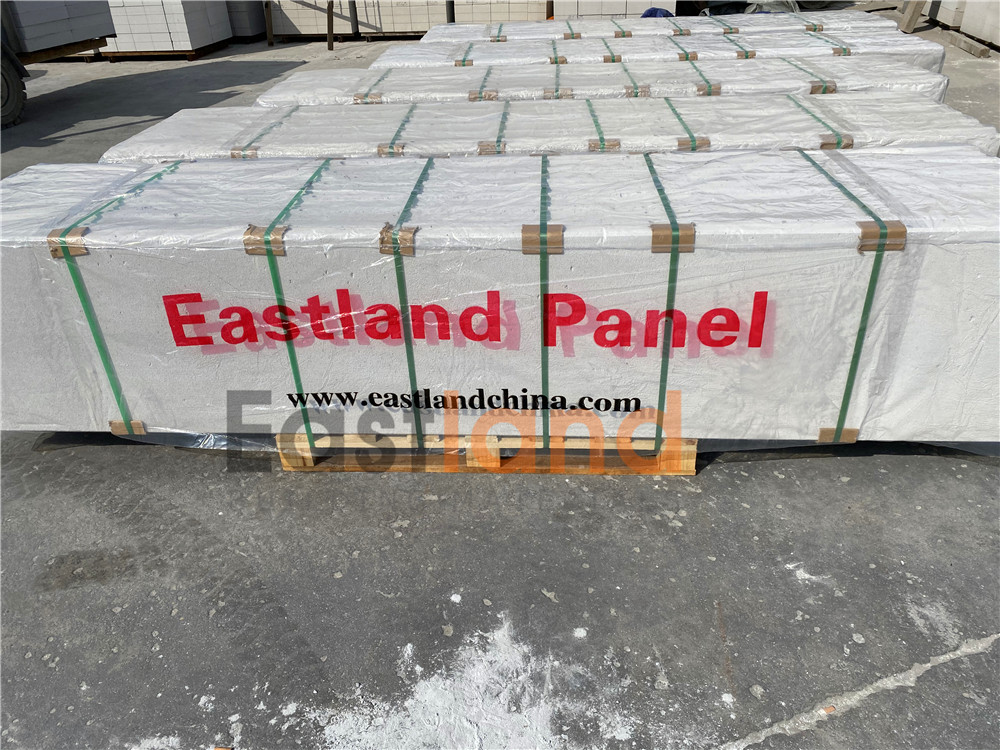

Packing & Delivery

With standard wooden pallets and containers or bulkship as request.














FAQ

Q: Why choose Eastland Panel?

A: Eastland Panel can be installed quickly and can help to reduce construction and labor costs. It is characterized by steel-reinforced, load-bearing, lightness, sound and heating insulation, fireproofing, environmental protection, etc.



Q: What's the application of Eastland Panel?

A: Eastland Panel can construct interior walls, exterior walls, ornamental walls, floors, roofings, claddings, ect.



Q: Do Eastland Panel have any international certification?

A: Yes. It has ASTM for USA, EN for Europe, AS for Australia, ect.



Q:What is the specific price of the product?

A:We need to quote according to your specific requirements, including the required product size, quantity, port of arrival, required time, etc. So if you need, please contact us, we will provide you with satisfactory service in time.
