规格: | |
---|---|
Quantity: | |

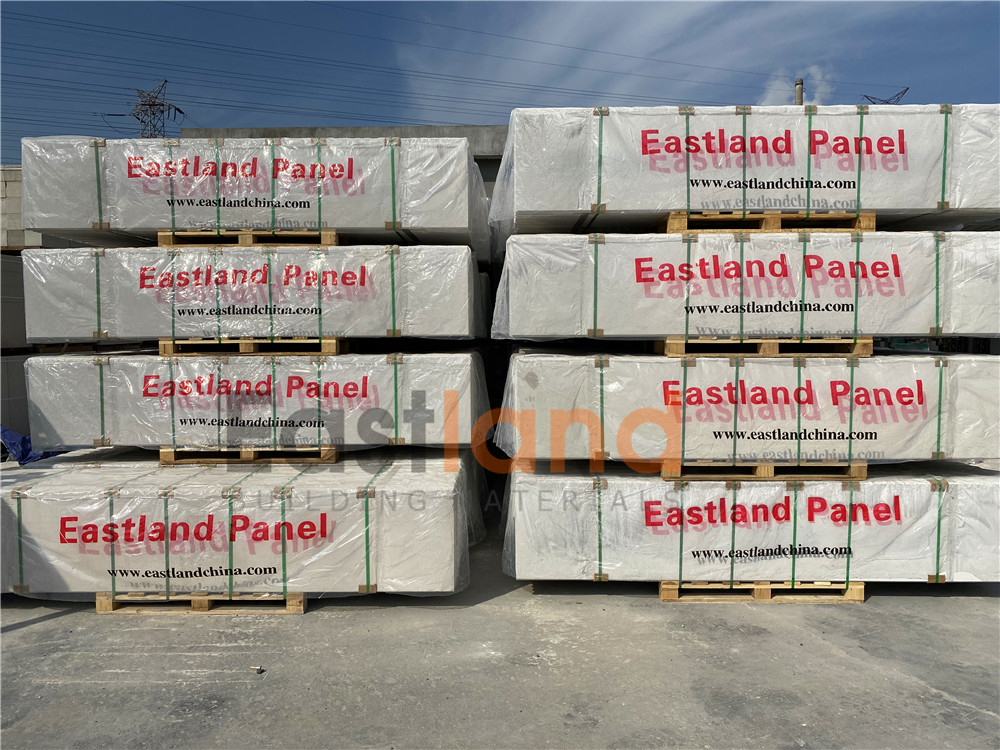

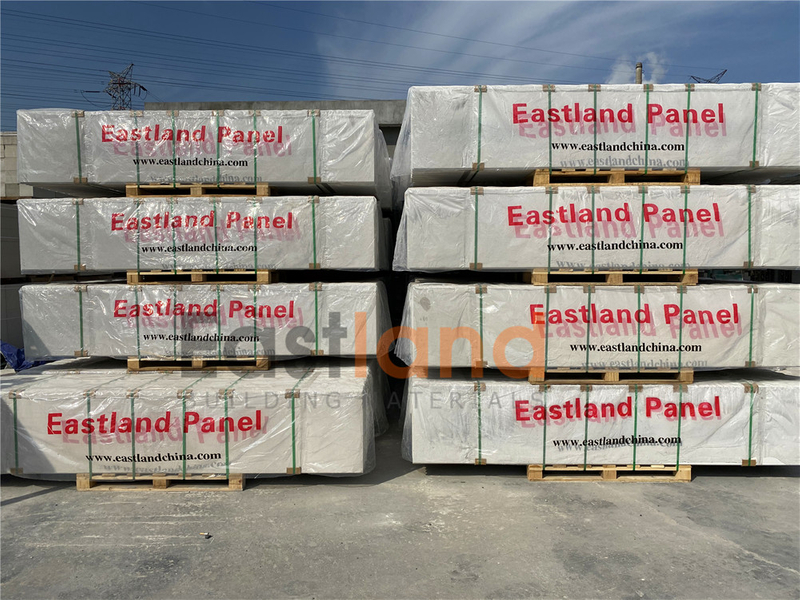

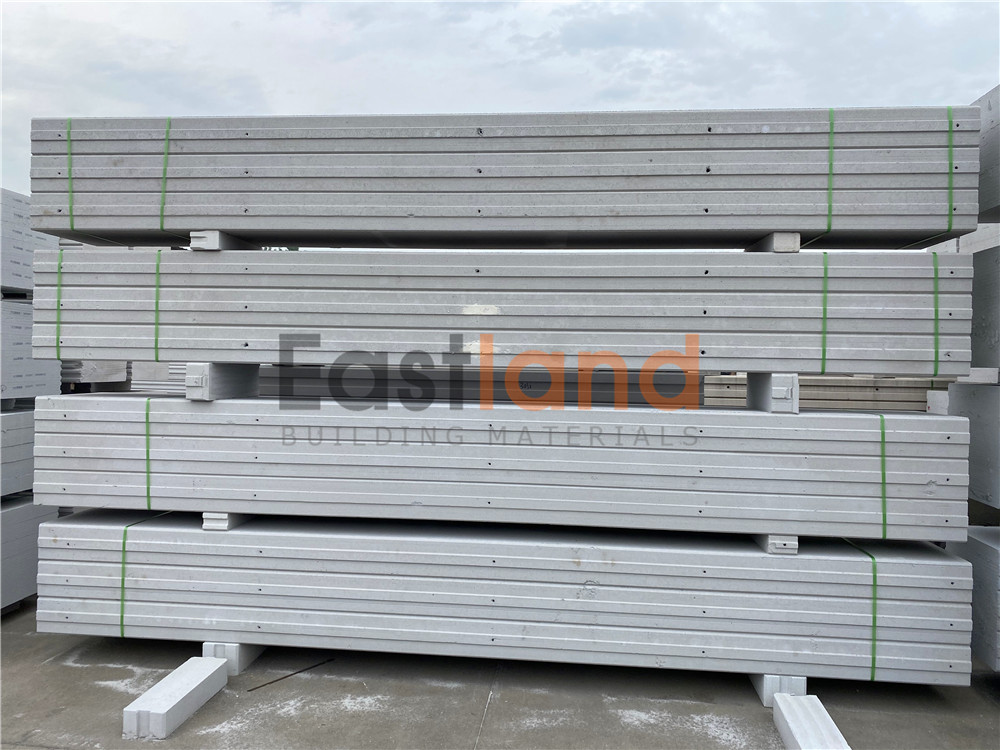

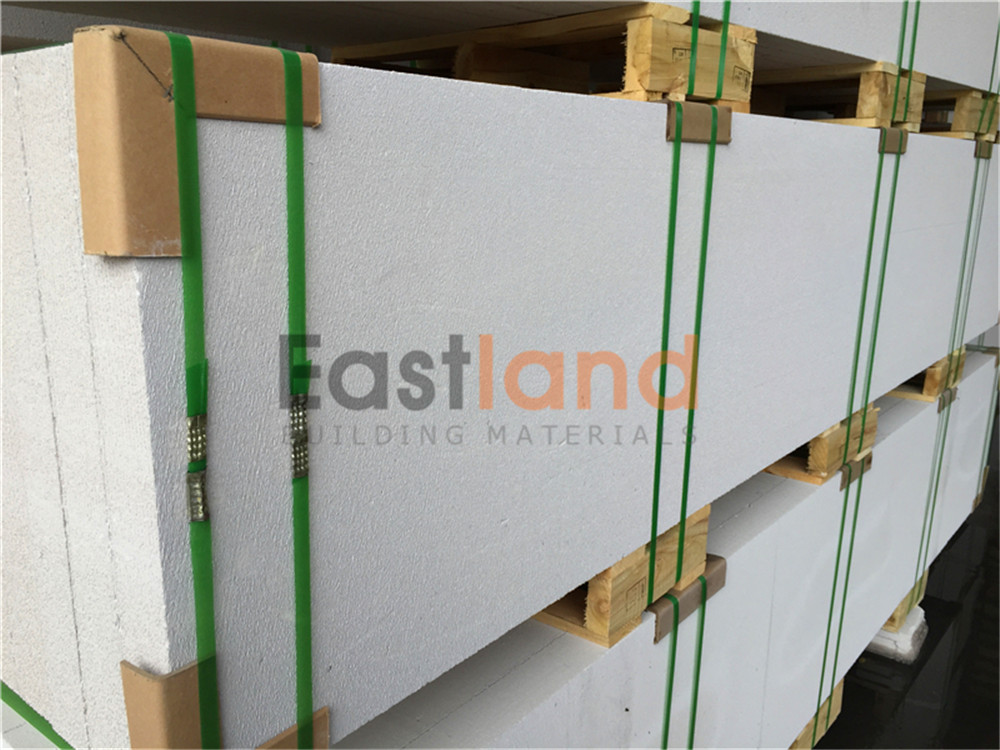

75mm AAC Panel
Eastland
50mm, 75mm, 100mm, 120mm, 150mm, 200mm, 240mm, 300
Fireproof, Load-Bearing, Sound & Heat Insulation
Load-Bearing Floor, Roof, Wall, Fence
420kg/M3, 520kg/M3, 620kg/M3
3.5MPa to 5.0MPa
ASTM, En, as
office building, villa, hospital,
Specific gravity 0.5 Floating on the water.The dry specific gravity of the AAC panel is only 0. 5 because it is oneof foamed concrete. As the above rate is 1/5 of common concrete
1/3 of hollow block, it lightens the self-weight of building, reduces
the cost of base and frame, cuts down the difficulty in process of
soft groundsill, and increases the construction quality.
A lot of micro and small air holes that are inside the AAc panel cause
multi-function of sound insulation and assimilation. The high precision ofpanel can create a fine air keeping space to supply a silent and
comfortable living environment.
Rate of heat transmission 0.11 1/10 of common concrete.A lot of micro and small air holes that are inside of the AAC panel form a static air layer in the material and make the rate of heat transmission of only 0.11W/m K. The function of heat insulation and preservation of the AAC panel is 10 time of common concrete. The function of heat preservation of AAC panel at 125mm thickness is same as 370mm wall of soil-block.
It is world-wide outstan." known of the anti-vibration ability of AAC panel
Only the constructions built with AAC panel are broken lightly at heavy
earthquakes at Osaka/Kobe
The tests in the laboratories of Tongji University and Southeast University in China show that the AAC panel has excellent function of anti-vibration
he light self-weight of AAC is the main cause, as it allows bigger angular distortion between layers and the allowed changing angle is 1/150.
Panel for wall----Fireproofing in 4 hours
The AAC panel can stand against fire as the low rate of heat
transmission. The self of AAC belongs to abio-compound and is not
burnable. It doesn't produce nocuousness gas. At Tianjin National
Fixed Anti-fire System Center, it passed the test for fire bearing of
240 min limit.
The AAC panel can bear wind load, snow load and dynamic load
There are following types of the AAC panels:
Outside wall panel
Inner wall panel
Roof panel
Floor panel
The steel ribs inside of AAC panel are arranged by CAd according to loading situation, that the capacity of loading is obtained.
In general, the loads of building are
1.Constant load (incl. self weight and floors)
2. Living load
3. Snow load
4. Wind load
5. The effect of earthquake
