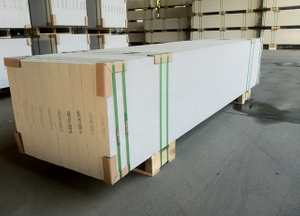

Precast ALC AAC Panel | Lightweight C Roof Panel

Precast ALC AAC Panel | Lightweight C Roof Panel

Name: Precast ALC AAC Panel | Lightweight C Roof Panel
Brand: Eastland
Rating: 5.0 (27 reviews)

Eastland ALC Panel is Autoclaved Lightweight Concrete(ALC) Panel, it is also called AAC Panel.Thermal insulated ALC roof slab, lightweight, fireproof, weather-resistant, easy installation. Perfect for energy-saving roof systems.


Availability:

Brand:
Eastland

DESCRIPTION

Description of Eastland AAC Panel

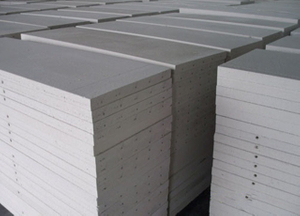

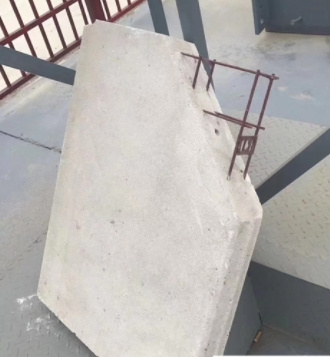

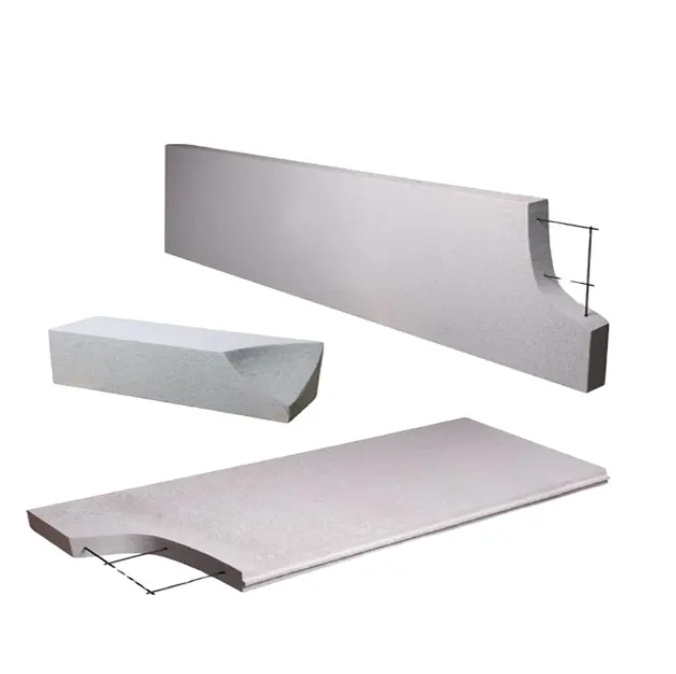

Eastland AAC Panel is the shortened form of Autoclaved Aerated Concrete Panel. The main materials of AAC panel are silicon sand, cement, lime and gypsum etc. Reinforced with anti-corrosion processed steel cage, the concrete panels with many air holes was formed after high-temperature, high-pressure protection with steam. It is a new type constructional material with excellent functions. There are patents of Germany, Sweden and Japan included in the production equipments. The complete production process, from mixing raw materials, anti-corrosion processing of steel cage, organizing into frame, pouring paste on, cutting, steaming and pressing to surface processing, is calculated accurately with computer program and has a rigid QC control.

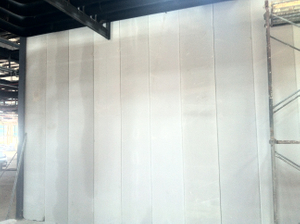

Eastland AAC Panel is also widely used to erect civil constructions (shopping malls, hospitals, schools, apartments, villas, etc) and industry constructions for floors, walls (exterior and interior), roofs, partitions, fences, etc.

Sizes of Eastland AAC Panel

Product	Code	Sizes of Products
		Length (mm)	Height/Width (mm)	Thickness (mm)

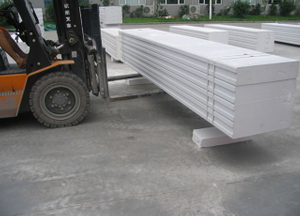

EASTLAND AAC External Panel	EEP	≤3000	600	50
		≤3300		75
		≤3600		100
		≤4200		120
		≤5200		150
		≤6000		200
		≤6000		250
		≤6000		300

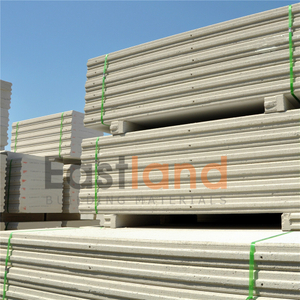

EASTLAND AAC Internal Panel	EIP	≤3000	600	50
		≤3300		75
		≤4000		100
		≤5000		120
		≤6000		150
		≤6000		200
		≤6000		250
		≤6000		300
EASTLAND AAC Roof Slab	ERP	≤2700	600	100
		≤3500		120
		≤4000		150
		≤6000		200
		≤6000		250
		≤6000		300
EASTLAND AAC Floor Slab	EFP	≤2250	600	50
		≤2250		75
		≤2400		100
		≤2600		120
		≤3400		150
		≤4500		200
		≤5700		250
		≤6000		300

Note: Other special sizes of panels and blocks can be ordered as per clients’ requirements.

Advantage of Eastland AAC Panels

Fast Dry Construction

Precut panels, dry installation, no wet mortar. Shortens construction period by 50% compared to traditional walls.

Superior Thermal Insulation

Thermal conductivity as low as 0.11 W/m·K, 10× better insulation than normal concrete. 125mm AAC external wall equals insulation performance of 370mm traditional brick wall.

Lightness

Specific gravity 0.5 Floating on the water.The dry specific gravity of the AAC panel is only 0. 5 because it is oneof foamed concrete. As the above rate is 1/5 of common concrete1/3 of hollow block

4‑Hour Fire Resistance

Inorganic non‑combustible material. Passed 240‑minute fire resistance test; no toxic fumes, fully meets international fire standards.

Fast Dry Construction

Precut panels, dry installation, no wet mortar. Shortens construction period by 50% compared to traditional walls.
Superior Thermal Insulation

Thermal conductivity as low as 0.11 W/m·K, 10× better insulation than normal concrete. 125mm AAC external wall equals insulation performance of 370mm traditional brick wall.
Lightness

Specific gravity 0.5 Floating on the water.The dry specific gravity of the AAC panel is only 0. 5 because it is oneof foamed concrete. As the above rate is 1/5 of common concrete1/3 of hollow block
4‑Hour Fire Resistance

Inorganic non‑combustible material. Passed 240‑minute fire resistance test; no toxic fumes, fully meets international fire standards.

FAQ

FAQs

Why choose Eastland Panel?

Eastland Panel can be installed quickly and can help to reduce construction and labor costs. It is characterized by steel-reinforced, load-bearing, lightness, sound and heating insulation, fireproofing, environmental protection, etc.
What's the application of Eastland Panel?

Eastland Panel can construct interior walls, exterior walls, ornamental walls, floors, roofings, claddings, ect.
Do Eastland Panel have any international certification?

Yes. It has ASTM for USA, EN for Europe, AS for Australia, ect.
What is the specific price of the product?

We need to quote according to your specific requirements, including the required product size, quantity, port of arrival, required time, etc. So if you need, please contact us, we will provide you with satisfactory service in time.
