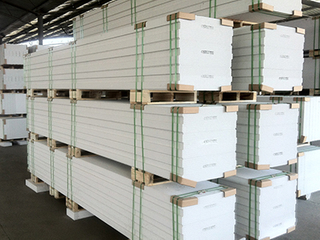

The Eastland AAC Floor Panel (Load-bearing) represents a major advancement in modern structural decking. It combines the solid feel of traditional concrete with the fast-assembly benefits of prefabrication. Engineered as lightweight structural decking, these autoclaved lightweight concrete (ALC) slabs deliver exceptional load distribution. Compared to heavy cast-in-place concrete systems, our structural slabs significantly reduce building dead loads. This efficiency lowers foundational costs and lightens support framing requirements. Underfoot, they provide a solid, squeak-free feel. This eliminates the bounce and noise transmission common in traditional wood joist sub-flooring.
Understanding the mechanical distinction between load-bearing AAC panels and lightweight sub-flooring is crucial for structural engineers. Both options offer excellent thermal and acoustic insulation. However, they serve vastly different structural roles in a building. We engineer our load-bearing panels as primary structural components. They feature heavy-duty, double-layer reinforcement designed to span structural beams. This allows them to directly support live and dead design loads. In contrast, lightweight sub-flooring panels feature thinner profiles. They suit interior loft expansions and raised floors resting on fully supportive sub-structures. Selecting the correct classification ensures structural safety and compliance with local building codes.
At the core of the Eastland AAC Floor Panel (Load-bearing) system's strength is an advanced reinforcement configuration. We manufacture each slab with two layers of high-tensile welded steel mesh. This embedded steel cage is treated with a specialized anti-corrosion protective liquid. The treatment prevents oxidation and ensures long-term structural durability in humid environments.
Physically, our panels meet the Class B06 dry density classification. This translates to a lightweight density of approximately 600 to 625 kg/m³. Despite this low weight, they deliver impressive compressive strength exceeding 4.0 to 5.0 MPa. The micro-porous structure of our autoclaved aerated concrete also provides superior thermal insulation. It offers outstanding fireproof performance, achieving fire ratings up to 4 hours. Furthermore, the high mass-to-density ratio delivers excellent acoustic dampening. Our panels can achieve Sound Transmission Class (STC) ratings up to 52 for peaceful multi-story living.
To assist structural engineers and estimators with precise project planning, we provide standardized sizes and profile configurations. Our ALC floor panel sizes are highly customizable to accommodate specific engineering calculations and structural span requirements.
| Specification Parameter | Standard Range / Configuration |
|---|---|
| Thickness | 100mm, 120mm, 150mm, 175mm, 200mm, up to 300mm |
| Width | Standard 600mm (24 inches) |
| Length | Up to 6000mm (custom spans available based on engineering load requirements) |
| Joint Profile | Tongue-and-Groove (T&G) or Flat-Edge configurations for optimal shear transfer |
| Dry Density | Class B06 (approx. 600–625 kg/m³) |
| Compressive Strength | ≥ 4.0 MPa to 5.0 MPa |
| Internal Reinforcement | Double-layer welded steel mesh with patented anti-corrosion coating |
We ensure every load-bearing AAC panel is produced to the highest global standards. Our advanced manufacturing facility features a fully automatic production line imported from Europe. This equipment guarantees exceptional dimensional tolerance and consistent material density. It also ensures the perfect alignment of the internal steel reinforcement cage.
This industrial precision allows us to comply strictly with major building standards. These include GB, ASTM, AS/NZS, and EN codes. Third-party testing from world-renowned organizations validates our commitment to quality. Builders and developers can confidently source our CodeMark certified products. We also carry verifications from TUV, SGS, and Intertek. These certifications ensure seamless regulatory approval across global markets.
Due to their unique balance of structural strength and lightweight properties, our load-bearing floor slabs are highly versatile. They serve as a premium alternative to heavy poured concrete decks and noisy wood sub-floors in several key applications:
Steel Structure Mezzanines: Perfect for commercial lofts and interior mezzanine builds. They require rapid installation and high load-bearing capacity.
Mid-Rise Light-Gauge Steel Frames: An ideal concrete flooring alternative that reduces overall dead weight. It maintains a solid concrete feel underfoot.
Timber Frame Developments: Provides an excellent acoustic and thermal barrier between floors. This upgrades the building's fire safety envelope and eliminates floor squeaks.
Prefabricated Housing Systems: Serves as an integrated structural component within our modern modular housing systems. This streamlines off-site construction for global developers.
Eastland supports developers, architects, and structural designers from initial planning to on-site installation. We offer access to essential engineering assets for project planning. These include comprehensive load-bearing capacity charts and detailed structural span tables. We also provide physical test reports and downloadable CSI specifications. These resources simplify peer reviews and calculations for design approval.
Our state-of-the-art production management ensures superior cost competitiveness without sacrificing safety. Our dedicated team manages comprehensive global export logistics. We provide end-to-end containerized shipping and secure delivery to project sites worldwide. As a trusted global manufacturer, we offer competitive factory-direct pricing for the Eastland AAC Floor Panel (Load-bearing). Contact our sales team today to request a quote or customized engineering support.
The load capacity depends on the panel thickness, span length, and embedded reinforcement. Our structural engineers design these panels to accommodate specific dead and live load criteria. You can refer to our official Load-Span Tables to select the correct panel size.
While they are lightweight compared to standard concrete, our load-bearing panels are large-format materials. We recommend installing them using small cranes or vacuum lifters. They slide easily into place with tongue-and-groove joints, significantly reducing total installation time.
Our load-bearing floor panels provide up to a 4-hour fire rating under international standards like ASTM and EN. They also deliver exceptional acoustic performance. Depending on panel thickness, they can achieve Sound Transmission Class (STC) ratings between 41 and 52.
Yes, our products are fully certified by reputable third-party bodies. These include CodeMark, TUV, SGS, and Intertek. We ensure full compliance with strict building codes across Australia, North America, and Europe.
