Eastland AAC Durable External Wall Cladding Panel And Boundary Wall Panel

The Eastland AAC external wall cladding system is a non-loadbearing wall cladding system for use in external and internal wall applications and presents options for a ventilated rainscreen facade or face sealed external wall system for multi residential apartments, commercial buildings and residential homes.

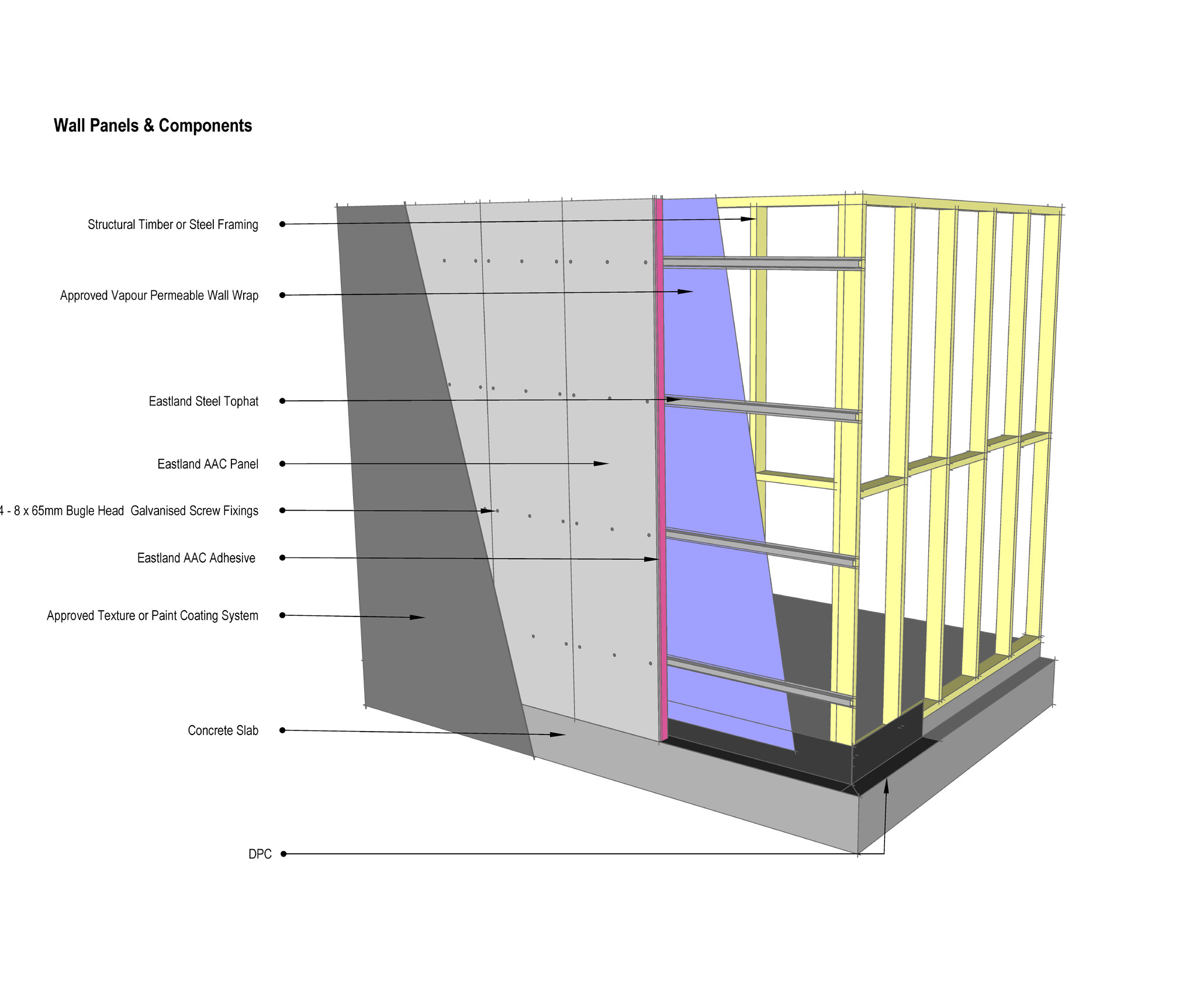

The Eastland AAC Cladding system components includes 50mm and 75mm reinforced AAC panels. The installer is required to supply battens / top hats, site mixed adhesive and appropriately rated fasteners for the vertical and/or horizontal support structure.

The Eastland AAC cladding panels are fixed into the building structure via Top Hat battens, which are in turn fixed to the stud frame members or at similar frequency for concrete and masonry structures. For external wall systems Top Hat battens shall provide a minimum cavity of 25mm width (subject to wind pressure loading), external to the weatherisation layer.

The base wall system structure behind the Eastland AAC Cladding System shall be designed to withstand project specific loads including wind loads and any other loading relevant to the application.

The external face of the base wall system structure / building frame shall be made weather tight using pliable membranes or rigid weather barriers to the manufacturer’s detail. Pliable membranes shall comply with AS4200.1 and be installed in accordance with AS4200.2. All weatherisation layers shall be suitable for project wind loads and must be airtight, watertight and flashed to ensure the wall system remains weatherproof.

Top Hat and Fastener selection including frequency /spacing to secure the Eastland AAC Panels to the base wall

system shall be conducted in accordance with the System Performance section of this manual.

Note: Other special sizes of panels and blocks can be ordered as per clients’ requirements.

Benefits of using Eastland External Wall Cladding Panel in your next project include:

Depending on the specific needs of customers and different product categories, we provide a variety of packaging suitable for both sea and land transportation, and select appropriate shipping methods (including various containerized and bulk carrier transports). This ensures that products arrive at the customer's warehouse or worksite intact.
