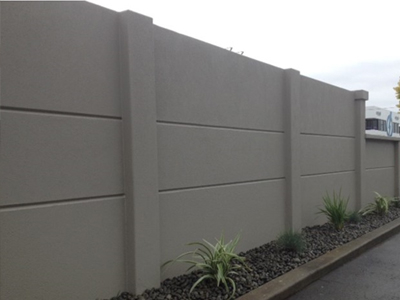

Eastland AAC Fence Panel
Eastland
Description
Manufacturing of EASTLAND AAC (Autoclaved Aerated Concrete) involves mixing cement, sand, lime and water, with an aluminium paste expanding agent. The mixture is poured into large moulds, filling to about two-thirds of the mould height. Upon contact, the expanding agent reacts with the other ingredients through a chemical reaction that creates small, finely-dispersed air bubbles. The resultant expansion causes the mix to rise within the mould to the full height.
The moulds are then pre-cured in a heated environment for 18-24 hours. The resulting semi-solid material, still in a green state, is then transported to a cutting machine where it is sliced into panels of desired sizes. Subsequently, the sliced panels or blocks undergo steam pressure curing in autoclaves for up to 12 hours where the final hydration of the cementitious mix occurs.
EASTLAND AAC Panels are reinforced with steel reinforcing bars, placed into the mould prior to the liquid mixture being poured. Eastland AAC Panels are manufactured in 50mm, 75mm , 100mm, up to 300mm thickness with a standard width of 600mm and various length options.
The combination of the expanding chemical reaction and the autoclave process confers upon EASTLAND AAC its distinctive lightweight properties. EASTLAND AAC exhibits exceptional thermal insulation and acoustic absorption capabilities, along with superior fire resistance and termite resistance. It conforms to relevant building codes and offers ease and efficiency in handling. EASTLAND AAC stands out as a versatile and cost-effective building material, meeting diverse demands better than alternatives due to its physical and mechanical properties.
Sizes of Eastland AAC Panels and Eastland AAC Blocks
Product | Code | Sizes of Products | ||
Length (mm) | Height/Width (mm) | Thickness (mm) | ||
EASTLAND AAC External Panel | EEP | ≤3000 | 600 | 50 |
≤3300 | 75 | |||
≤3600 | 100 | |||
≤4200 | 120 | |||
≤5200 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Internal Panel | EIP | ≤3000 | 600 | 50 |
≤3300 | 75 | |||
≤4000 | 100 | |||
≤5000 | 120 | |||
≤6000 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Roof Slab | ERP | ≤2700 | 600 | 100 |
≤3500 | 120 | |||
≤4000 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Floor Slab | EFP | ≤2250 | 600 | 50 |
≤2250 | 75 | |||
≤2400 | 100 | |||
≤2600 | 120 | |||
≤3400 | 150 | |||
≤4500 | 200 | |||
≤5700 | 250 | |||
≤6000 | 300 | |||
Note: Other special sizes of panels and blocks can be ordered as per clients’ requirements.
Advantage of Eastland AAC Panels
Benefits of using Eastland AAC Fence Panel in your next project include:
Packing & Shipping
Depending on the specific needs of customers and different product categories, we provide a variety of packaging suitable for both sea and land transportation, and select appropriate shipping methods (including various containerized and bulk carrier transports). This ensures that products arrive at the customer's warehouse or worksite intact.
