Eastland AAC Floor Panel (Non-Load-bearing)
Eastland
Description
The Eastland AAC Flooring system presents loadbearing suspended fooring systems for use in framed foor applications for low-rise residential & multi-residential dwellings and light commercial applications where suspended fooring may be required.
The Eastland AAC Flooring system components includes 50mm and 75mm reinforced AAC panels and Eastland AAC Adhesive. The builder / installer is required to supply framing and appropriately rated fasteners for the support structures for the Eastland AAC Floor panels.
The Eastland AAC Floor panels are fire rated, loadbearing panels and may be installed directly over structural floor framing with or without insulation and/or fre rated plasterboard ceiling systems beneath.
Eastland AAC Flooring delivers long-term durability and the solid feel of a concrete slab without the delays and mess of a poured concrete floor. Precast, reinforced Autoclaved Aerated Concrete (AAC) panels are fixed directly to either timber and steel joists and are immediately ready for floor finishes.
Floor framing structures supporting Eastland AAC Panels shall be designed as loadbearing structures with suitable joist spacing to suit AAC floor panels plus loading and spanning requirements of the floor system.
The following Eastland AAC fooring system options are presented with the respective Fire and Acoustic performance details for each option.
Sizes of Eastland AAC Panels and Eastland AAC Blocks
Product | Code | Sizes of Products | ||
Length (mm) | Height/Width (mm) | Thickness (mm) | ||
EASTLAND AAC External Panel | EEP | ≤3000 | 600 | 50 |
≤3300 | 75 | |||
≤3600 | 100 | |||
≤4200 | 120 | |||
≤5200 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Internal Panel | EIP | ≤3000 | 600 | 50 |
≤3300 | 75 | |||
≤4000 | 100 | |||
≤5000 | 120 | |||
≤6000 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Roof Slab | ERP | ≤2700 | 600 | 100 |
≤3500 | 120 | |||
≤4000 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Floor Slab | EFP | ≤2250 | 600 | 50 |
≤2250 | 75 | |||
≤2400 | 100 | |||
≤2600 | 120 | |||
≤3400 | 150 | |||
≤4500 | 200 | |||
≤5700 | 250 | |||
≤6000 | 300 | |||
Note: Other special sizes of panels and blocks can be ordered as per clients’ requirements.
Advantage of Eastland AAC Panels
Key Benefits of using Eastland AAC Floor Panel in your next project include:

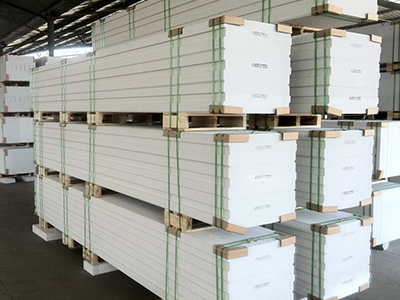

Packing & Shipping
Standard Export Pack: Stacked on wooden pallet, wrapped waterproof stretch film + galvanized steel strapping, anti-collision corner protection for sea freight.
Custom packaging available as buyer’s special requirement.
Strict full QC inspection before loading, pallet size optimized for 20GP/40HQ container to maximize loading rate & lower logistics cost.
Global shipment to Australia, NZ, Southeast Asia, Middle East, Europe & USA.
