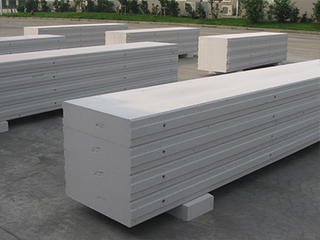

The Eastland AAC External Wall Panel is a high-performance structural solution. It easily meets the rigorous demands of modern commercial and residential construction. Our Autoclaved Aerated Concrete (AAC) and ALC panels are optimized for lightweight curtain walls. They integrate seamlessly with prefabricated steel and concrete frames. We manufacture these panels on fully automatic European production lines. This ensures unmatched physical stability and precise dimensions for large-scale developments. Structural engineers globally trust our building systems for energy efficiency, fire safety, and rapid construction.
International building regulations require materials that meet stringent safety and structural guidelines. We manufacture every Eastland AAC External Wall Panel to comply with major global construction standards. These include ASTM for the Americas, AS/NZS for Australia and New Zealand, EN for Europe, and GB standards for China. Our autoclaved aerated concrete systems undergo rigorous third-party testing to guarantee consistent quality. We proudly hold prominent certifications like CodeMark, TUV, SGS, and Intertek. These credentials ensure seamless regulatory approval and complete peace of mind for developers and procurement managers.
Structural designers require highly reliable engineering data. We engineer the Eastland AAC External Wall Panel to precise, high-performance tolerances. These panels combine a lightweight profile with exceptional structural strength. They deliver wind resistance and load-bearing capacities that rival traditional masonry cladding. Below is a comprehensive overview of the technical parameters defining our exterior wall system.
| Parameter / Specification | Technical Value & Standard |
|---|---|
| Core Reinforcement | Double-layer welded steel mesh (ST50, yield strength 500 MPa) |
| Wind Load Bending Resistance | Up to 150 kg/m² |
| Porosity & Structure | Closed micro-pore technology (1-2mm diameter) |
| Moisture Impermeability | Up to 80% higher than standard concrete or clay bricks |
| Joint Profile | Precision-engineered tongue-and-groove joint profile |
| Fire Resistance Rating | Up to 4 hours (non-combustible Class A1) |
| Dry Density Class | Approx. 500 - 650 kg/m³ (lightweight concrete) |
A specialized double-layer reinforced steel mesh sits at the core of our external wall panels. We treat this cage with advanced anti-corrosion coatings. The internal core uses high-tensile ST50 steel with a 500 MPa yield strength. It distributes mechanical loads evenly and prevents panel deflection under extreme stress. This robust reinforcement allows the panels to resist severe wind bending forces up to 150 kg/m². They are ideal for coastal environments and multi-story commercial curtain walls.
A uniform 1-2mm micro-pore structure defines the physical properties of our AAC exterior panels. This forms during the high-pressure steam autoclaving process. The unique cellular structure delivers outstanding thermal insulation and high R-values. It drastically reduces HVAC operational costs and improves building energy ratings. Additionally, these largely closed micro-pores act as an effective barrier against water penetration. They provide up to 80% higher moisture impermeability compared to standard clay bricks.
Partnering with a reliable manufacturer is crucial for securing cost-effective supplies for large-scale developments. We leverage state-of-the-art European automatic production lines. This allows us to manufacture external wall panels with microscopic consistency and flawless dimensional accuracy. Operating from our facilities in China provides significant cost advantages. We pass these substantial savings directly to global buyers without compromising international quality standards. Eastland brings over a decade of industry experience and a mature global distribution network. We proudly serve the Americas, Europe, Southeast Asia, Australia, the Middle East, and Africa. Our team ensures rapid delivery, secure packing, and complete project support.
Our external panels are highly adaptable across commercial, industrial, and residential projects. They combine a lightweight profile, high structural integrity, and simple installation. These panels serve as an ideal thermal, acoustic, and fire-resistant barrier. They suit both high-rise and low-rise building envelopes perfectly. The following sections outline the primary architectural applications for our systems.
Our AAC panels offer high compatibility with modern steel frame and concrete column designs. Their lightweight composition significantly reduces the overall dead load of the building frame. This allows engineers to design more economical foundations. Installers quickly secure the panels to the main framework using specialized steel brackets. This drastically cuts down structural enclosure timelines.
The Eastland AAC External Wall Panel serves beautifully as a lightweight curtain wall. It provides an exceptional finish ready for direct plastering, texture coating, or painting. Beyond aesthetic flexibility, the system forms a continuous insulation and weatherproof envelope. It shields commercial developments from harsh external elements while offering maximum structural safety.
Specifying our external wall panel systems delivers tangible financial and operational advantages. Replacing labor-intensive bricklaying with large-format, lightweight panels helps projects achieve rapid structural close-ins.
Accelerated Construction Speed: Large-format panels allow rapid installation, significantly reducing overall building schedules.
Reduced Labor Expenses: Our system minimizes the need for heavy on-site masonry crews and specialized heavy equipment.
Optimized Interior Space: Thinner external profiles achieve the same thermal performance as thick brick walls, maximizing rentable floor area.
Lower Finishing Costs: The smooth panel surface is immediately ready for direct plastering, texture coatings, or external paint.
Exceptional 4-Hour Fire Rating: Meets strict local safety codes, acting as a non-combustible Class A1 barrier to protect assets.
At Eastland, we provide a fully integrated exterior cladding solution. Our panels feature a precision-engineered tongue-and-groove joint profile. This design simplifies alignment during installation and ensures a tight seal against thermal bridging. We supply a complete range of auxiliary materials and accessories to guarantee structural performance and longevity.
High-Strength Adhesives: Formulated for thin-bed jointing to secure panel edges with maximum shear strength.
Specialized Mounting Brackets: Corrosion-resistant steel connectors designed to anchor panels firmly to building frameworks.
Anti-Corrosion Repair Mortars: Specifically formulated to patch, fill, and finish joints, maintaining overall structural integrity.
As a leading global manufacturer, we are committed to delivering world-class building systems directly to your job site. Contact our engineering team today to request a comprehensive technical quote. We can easily discuss custom sizing options for the Eastland AAC External Wall Panel to perfectly support your next B2B development project.
What international building standards do Eastland AAC External Wall Panels comply with?
We manufacture our AAC panels to meet diverse global standards. These include ASTM for the Americas, AS/NZS for Australia and New Zealand, EN for European markets, and GB standards. Our products hold major international certifications such as CodeMark, TUV, SGS, and Intertek.
How do your external panels perform under high wind loads and seismic activity?
We reinforce our external wall panels internally with double-layer welded steel mesh. This robust core allows them to resist wind bending loads up to 150 kg/m². Additionally, our engineered joints easily accommodate multi-directional structural movement to provide excellent seismic resilience.
Are the accessories required for installing Eastland AAC panels provided?
Yes, we offer a completely integrated wall system. Our team supplies all necessary auxiliary materials and accessories. This includes high-strength installation adhesives, specialized brackets, fixing anchors, and joint repair mortars to ensure a secure installation.
What are the fire-resistance and thermal insulation capabilities of these external panels?
Our Eastland AAC External Wall Panels offer an exceptional fire rating of up to 4 hours. They act as a non-toxic, highly secure barrier. Their closed micro-pore structure also provides outstanding thermal insulation to significantly lower heating and cooling costs.
