Description

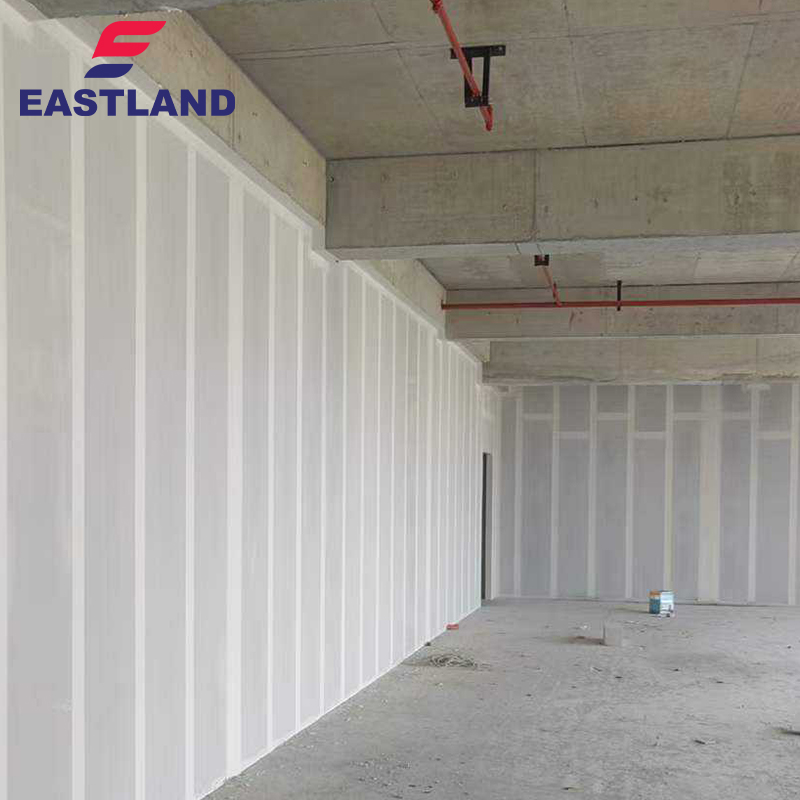

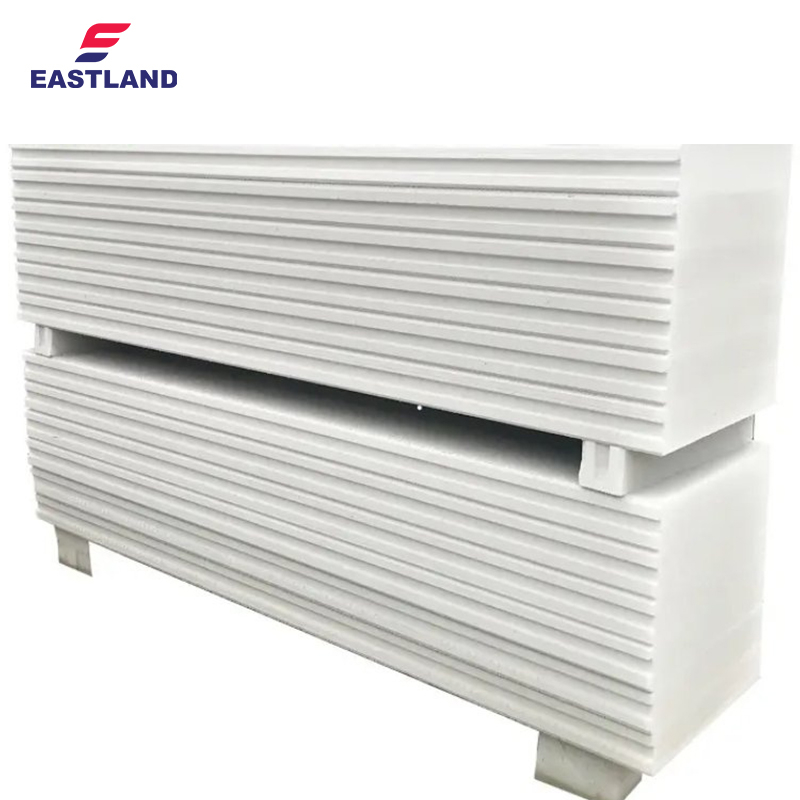

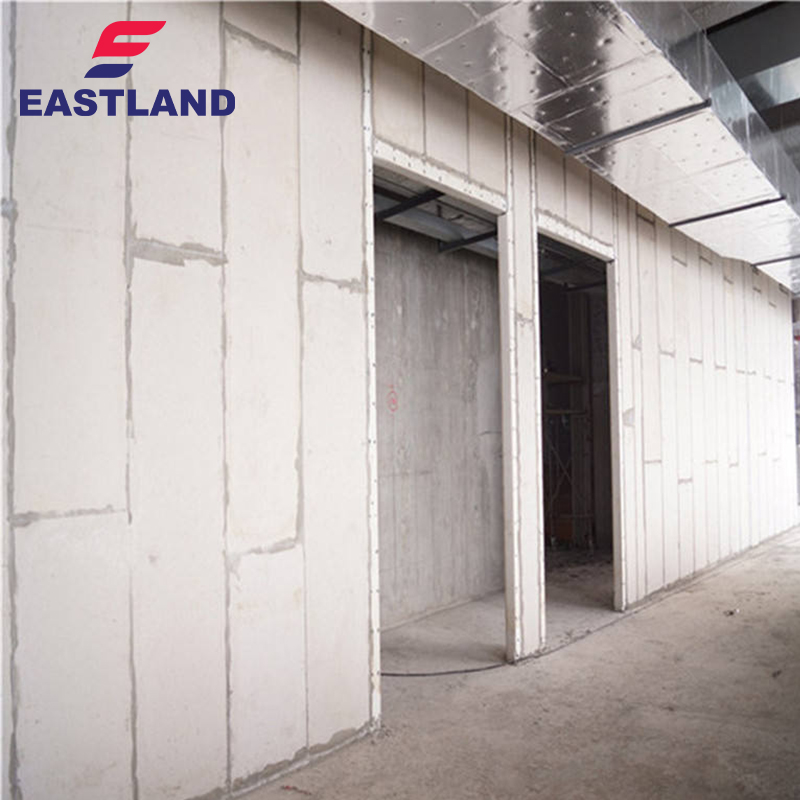

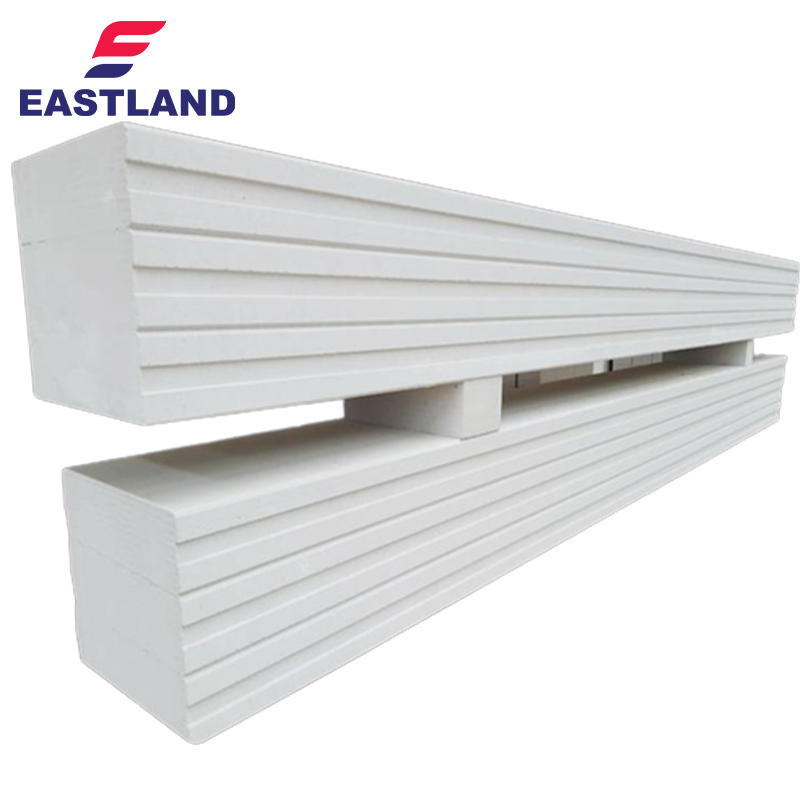

Eastland AAC Panel is a reinforced autoclaved aerated concrete building system designed for intertenancy walls, external wall cladding, flooring, partitions, and service shafts. Available in 50mm and 75mm thickness with a standard width of 600mm, it complies with AS 5146, BCA / NCC and holds CodeMark certification. It delivers non-combustible performance, high fire resistance, excellent acoustic insulation, thermal efficiency, and fast dry construction for low-rise, high-rise residential, and commercial projects.
Sizes of Eastland AAC Panels and Eastland AAC Blocks
Product | Code | Sizes of Products | ||
Length (mm) | Height/Width (mm) | Thickness (mm) | ||
EASTLAND AAC External Panel | EEP | ≤3000 | 600 | 50 |
≤3300 | 75 | |||
≤3600 | 100 | |||
≤4200 | 120 | |||
≤5200 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Internal Panel | EIP | ≤3000 | 600 | 50 |
≤3300 | 75 | |||
≤4000 | 100 | |||
≤5000 | 120 | |||
≤6000 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Roof Slab | ERP | ≤2700 | 600 | 100 |
≤3500 | 120 | |||
≤4000 | 150 | |||
≤6000 | 200 | |||
≤6000 | 250 | |||
≤6000 | 300 | |||
EASTLAND AAC Floor Slab | EFP | ≤2250 | 600 | 50 |
≤2250 | 75 | |||
≤2400 | 100 | |||
≤2600 | 120 | |||
≤3400 | 150 | |||
≤4500 | 200 | |||
≤5700 | 250 | |||
≤6000 | 300 | |||
Note: Other special sizes of panels and blocks can be ordered as per clients’ requirements.
Advantage of Eastland AAC Panels
Australian Standard & CodeMark Certified
Complies with AS 5146.1/2/3, BCA/NCC 2022, with CodeMark CM40458 / CM40470 certification. Fully Deemed-to-Satisfy (DTS) for Australian building projects.
A1 Non-Combustible & High Fire Resistance
Non-combustible material (BCA Volume 1 C2D10).
Fire Resistance Level (FRL): -/60/60 up to 120/120/120.
50mm panel: FRL 120/120/120; 75mm panel: FRL 180/180/180.
Suitable for BAL-FZ bushfire zones.
Excellent Acoustic Insulation
Airborne sound insulation Rw up to 73dB, Rw+Ctr up to 58dB.
Discontinuous construction minimizes impact sound transmission.
Ideal for intertenancy & hotel walls requiring high acoustic performance.
Lightweight & High Structural Strength
Dry density: 445–515 kg/m³; working density: 512–592 kg/m³.
Weight: 30 kg/m² (50mm) / 38 kg/m² (75mm).
Compressive strength: ≥2.0–2.5 MPa.
Flexural strength: 0.32–0.39 MPa.
Packing & Shipping
Packing: Standard wooden pallets with foam cushioning, waterproof film, and steel belt strapping to avoid collision, moisture, and breakage.
Loading: Suitable for 20FT / 40HQ containers; optimized loading to reduce shipping cost.
Transport: Sea freight for bulk orders; air freight / express available for samples and small orders.
Insurance: Full cargo insurance included to cover transportation damage.
Delivery: Standard production 7–10 working days; shipping 15–35 days to major global ports.
