Specifying building materials goes far beyond merely checking boxes on a design sheet. Choosing the right floor system becomes a critical structural and financial decision for your entire build. You must carefully evaluate load paths to guarantee absolute safety over decades of use. Over-specifying panels wastes your project budget and severely increases handling costs on site. Conversely, under-specifying introduces catastrophic structural failure and massive compliance liabilities. You simply cannot afford to guess when it comes to supporting live and dead loads. This guide provides structural engineers, architects, and contractors with a definitive framework. We will help you evaluate, specify, and procure the correct panel type. We break down load paths, span requirements, and overall project economics. You will leave with a clear, actionable roadmap for selecting the precise material your structural application demands.
The primary distinction lies in internal anti-corrosion steel mesh configuration, density, and compressive strength, not just external dimensions.
A load-bearing floor panel is engineered to transfer live and dead loads to the primary framework, while a non-load-bearing panel is restricted to infill, insulation, or strictly isolated applications.
High-traffic areas like mezzanine flooring explicitly demand load-bearing systems due to dynamic point-load stresses.
Final specification requires local building code compliance and structural engineering sign-off—never substitute panel grades post-approval.
Understanding the core differences between panel grades prevents costly engineering mistakes. From the outside, panels often look identical. They share the same porous texture and light gray color. However, their internal engineering differs drastically.

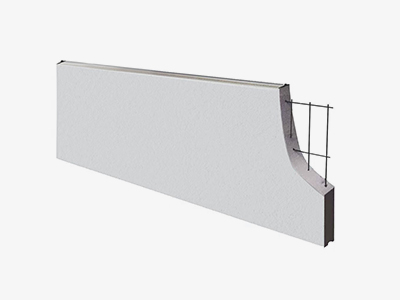

An AAC floor panel relies on carefully calibrated materials. Load-bearing units feature a highly engineered internal structure. Manufacturers embed a bi-directional welded steel mesh deep inside the concrete matrix. Before casting, factories dip this mesh into an anti-corrosion liquid. This prevents rust over the lifespan of the building. Furthermore, structural panels use higher density aerated concrete grades. This increases overall compressive strength.
In contrast, standard panels lack this heavy reinforcement. They might contain minimal wire to prevent transit breakage, but nothing more. Their internal density remains lower. This maximizes thermal insulation but sacrifices structural rigidity.
You must understand how forces travel through your building. We categorize these forces into two distinct mechanics.
Load-Bearing Mechanics: These structural units act as a rigid diaphragm. They safely capture live loads. This includes walking people, moving furniture, and vibrating equipment. They also carry dead loads, such as floor finishes and partition walls. The internal steel mesh captures flexural tension. The panel then transfers all combined forces laterally to your supporting beams or structural walls.
Non-Load-Bearing Mechanics: A non-load-bearing panel supports purely its own weight. It cannot act as a structural diaphragm. If you apply downward pressure beyond standard environmental minimums, it deflects. If you push it laterally, it fails. You use these exclusively as passive filler elements.
How do you verify the panel grade upon delivery? You cannot simply guess. Contractors must implement strict receiving protocols. First, check the factory markings printed on the side of each unit. These alphanumeric codes indicate density and mesh type. Second, cross-reference the delivery tags with the technical data sheets. Finally, inspect the panel ends. You can often see the exposed anti-corrosion reinforcement near the connecting grooves. If you do not see heavy steel mesh, do not install it across open joists.
Selecting the correct material requires mathematical evaluation. You cannot rely on instinct. Structural engineers rely on proven frameworks to ensure safety and code compliance.
The distance between your joists dictates your panel choice heavily. Deflection limits determine maximum permissible spans. Standard building codes often restrict floor deflection to L/360. If you span too far, the floor will bounce. This causes micro-cracking in the concrete finish above. Standard thickness panels require specific support intervals. A 150mm panel requires closer beams than a 200mm panel. You must align your steel framework directly with the manufacturer's spanning tables.
You must calculate total expected forces. We divide these into live loads and dead loads. Dead loads include the panel weight, leveling screed, and tiles. Live loads change daily. Residential projects usually assume uniform distributed loads (UDL) around 1.5 to 2.0 kN/m². Commercial projects face stricter demands. Offices and retail spaces often require 3.0 to 5.0 kN/m². Heavy equipment zones demand even more. You must know your target UDL before specifying a panel.
To simplify procurement, follow a strict decision tree. The wrong choice leads to rapid structural degradation. We created a matrix to guide your selection process.
Project Application Scenario | Recommended Panel Type | Primary Structural Rationale |
|---|---|---|
Spanning across open structural steel beams | Load-Bearing | Requires internal mesh to resist flexural tension and transfer loads to supports. |
Creating brand new elevated floor levels | Load-Bearing | Must act as a primary diaphragm for entire floor live and dead loads. |
Thermal/acoustic infill over an existing concrete slab | Non-Load-Bearing | Existing slab carries all structural forces; panel only adds insulation. |
Supporting masonry partition walls above | Load-Bearing | Must carry concentrated dead loads without deflecting or cracking. |
Non-traffic drop ceilings or roof insulation layers | Non-Load-Bearing | Experiences zero live loads; relies only on self-weight capacities. |
Always review this matrix with your structural engineer. Never assume a non-structural panel can survive an active load path. Your safety margins depend entirely on honest application assessments.
Industrial and commercial spaces constantly seek ways to maximize vertical volume. Constructing mezzanine flooring provides an excellent solution. However, the material you select for this elevated platform changes everything.
Why do contractors increasingly choose aerated concrete over timber or poured concrete? The answers lie in speed and weight. Timber feels cheap but requires massive fire-proofing treatments. Poured concrete offers incredible strength but introduces massive dead weight. It also requires weeks of curing time. Aerated panels solve both problems. Their lightweight nature drastically reduces the required steel sub-structure. You save money on structural steel framing. Furthermore, they offer superior fire ratings out of the box. You also benefit from immediate dry installation. Crews place the panels, secure them, and immediately walk on them.
Mezzanines often suffer from terrible acoustics. Steel-and-wood setups act like giant drums. Footsteps echo loudly throughout the warehouse. Carts rolling across plywood create deafening vibrations. Aerated concrete mitigates this "drum effect" completely. The cellular density of the material traps sound waves. It dampens impact noise and prevents vibration transfer. The platform feels solid and permanent underfoot.
You must acknowledge the specific dangers of industrial platforms. Warehouses subject floors to extreme point loads. Pallet jacks exert massive pressure through tiny polyurethane wheels. Heavy shelving units focus tons of weight onto small metal base plates. Standard foot traffic ratings do not apply here. You must specify a heavy-duty load-bearing floor panel designed for dynamic point loads. Inadequate panels will eventually puncture. A pallet jack wheel breaking through the floor creates a catastrophic safety hazard.
Procuring the right material represents only half the battle. You must safely transport, lift, and install these units. Every AAC floor panel requires precise logistics.
Contractors must prepare for heavy lifting. You cannot move structural panels by hand. They contain dense concrete and heavy steel mesh. You need cranes, forklifts, or specialized vacuum lifters. Crews guide them into place using heavy-duty nylon straps. Safety protocols must remain strict. Non-structural panels feel much lighter. Two workers can often maneuver them manually. Do not underestimate the equipment required for structural grades. Book your cranes early and train your riggers thoroughly.
Consider the cascading benefits of smart material selection. Aerated concrete weighs significantly less than traditional precast concrete slabs. Because the floor system weighs less, the underlying steel framework carries less dead weight. Because the steel frame carries less load, you can value-engineer the columns. Lighter columns mean you can pour smaller concrete footings. You reduce foundation depth. This chain reaction offsets the premium cost of the panels themselves. You save money on steel, excavation, and poured concrete.
You must plan your construction schedule carefully. Factories custom-reinforce structural panels for specific project spans. The engineers calculate the exact steel mesh required for your specific joist layout. Because of this customization, lead times can stretch. You cannot order these off the shelf. More importantly, you cannot easily cut them on-site. If a panel arrives too long, you cannot simply trim a foot off the end. Modifying the ends destroys the structural integrity. You must order exact sizes and enforce strict framing tolerances.
Construction sites breed improvisation. Workers often try to solve problems on the fly. When working with engineered floor systems, improvisation leads to disaster. You must avoid common specification traps.
Contractors frequently commit the retrofit fallacy. They accidentally order non-structural panels. To fix the mistake, they try to add extra steel joists underneath. They assume closer supports will make the weak panel strong. This fails completely. Structural capacity is baked directly into the factory manufacturing process. A weak panel lacks the internal tension mesh. Regardless of how many joists you place underneath, it will crack under dynamic live loads. You cannot upgrade a panel in the field.
Modern floors require utility penetrations. Plumbers need holes for pipes. Electricians need conduit drops. HVAC technicians require large duct openings. You face strict limitations when creating these openings. You cannot core drill randomly. Cutting through a structural panel severs the internal steel mesh. This instantly weakens the entire span. Before making any cuts, you must consult the manufacturer guidelines.
Never cut through the primary longitudinal reinforcement bars.
Keep small penetrations strictly within the center zones of the panel.
For large stairwell openings, frame a dedicated steel perimeter to support the cut ends.
If you violate these rules, the panel loses its load-bearing certification.
Every decision must survive legal scrutiny. You must align your panel selection with local and international building codes. Structural engineers typically reference Eurocode 6 for masonry and aerated concrete systems. In North America, professionals follow the IBC (International Building Code). These codes dictate safety factors, deflection limits, and fire testing standards. Always secure formal structural engineering approval. Never substitute panel grades after the city approves your permits. Swapping materials illegally voids your insurance and exposes you to massive liabilities.
The distinction between structural and non-structural panels dictates the fundamental safety of your building. Load paths demand respect. Specifying the correct internal steel reinforcement guarantees your floor system will perform flawlessly under pressure. We strongly advise taking a proactive approach to your structural planning.
First, compile your exact span measurements and expected live loads. Second, gather your architectural floor plans and utility layouts. Finally, route all this documentation directly to a qualified technical sales engineer. They will run the calculations and specify the exact product grading you require. Make structural integrity your primary goal, and your project will proceed smoothly.
A: No. Non-load-bearing panels lack the internal structural mesh to resist flexural tension, regardless of how close the joists are. They will crack under live loads.
A: While exact thickness depends on the required span and load capacity, commercial load-bearing panels typically start at 150mm (approx. 6 inches). Always refer to the manufacturer's load tables.
A: Visual inspection is difficult once installed. You must consult the original architectural structural drawings or hire a structural engineer to assess the load paths and sub-structure (e.g., bearing direction, joist spacing).
